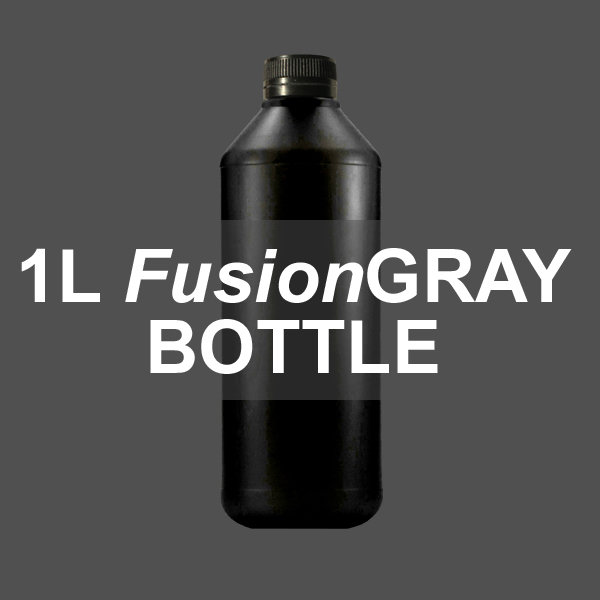

FusionGRAY 1 liter
FGRY-1L
FusionGRAY is a great material for higher temp applications:
High temperature material for: injection molding inserts, vulcanized rubber molding master patterns. This Photo Polymer is for use in Asiga additive manufacturing systems with the 405nm wavelength emitter.
Note: We do not sell material "packs". There is no trays included. Purchase trays in "Consumables" section of shop. By selling in this way, we save you money.
High Temp applications gray material.
Code: FSGR-1L
Dimensions: 22.0 x 21.5 x 7.0 cm
PlasGRAY is a high resolution photopolymer suitable for a wide range of applications.
.
Resins are non-returnable.
|
MECHANICAL PROPERTIES |
|
|
Color |
Dark Gray |
|
Tensile Strength |
51.1 Mpa |
|
Elongation at Break |
6.58 % |
|
Elongation at Yield |
8.40% |
|
Flexural Strength |
86.8 MPa |
|
Flexural Modulus |
1910 MPa |
|
Hardness (Shore D) |
82 Shore D |
|
Viscosity |
343 mPa s |
|
Glass Transition Temperature |
160oC 320oF |
|
Izod Impact-Notched |
4.97 kJ/m² |
|
Density |
1.181 g/cm³ |
